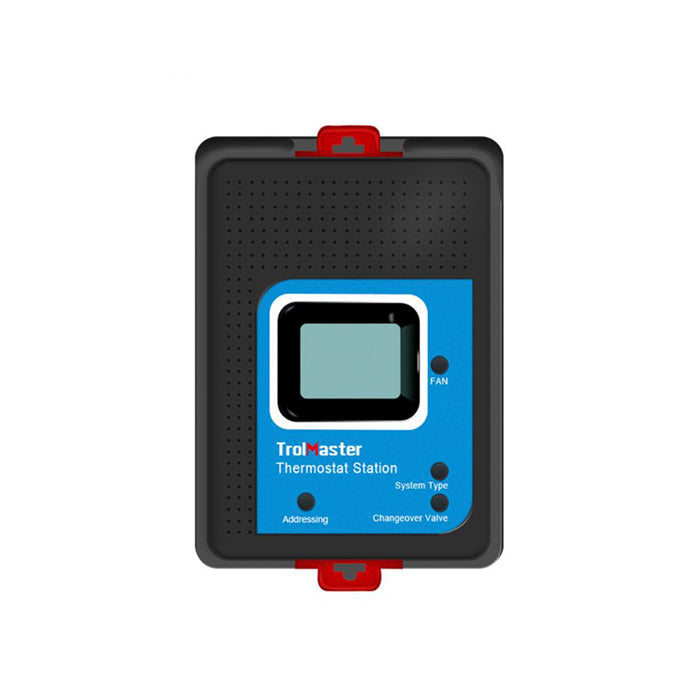

TROLMASTER - THERMOSTAT STATION

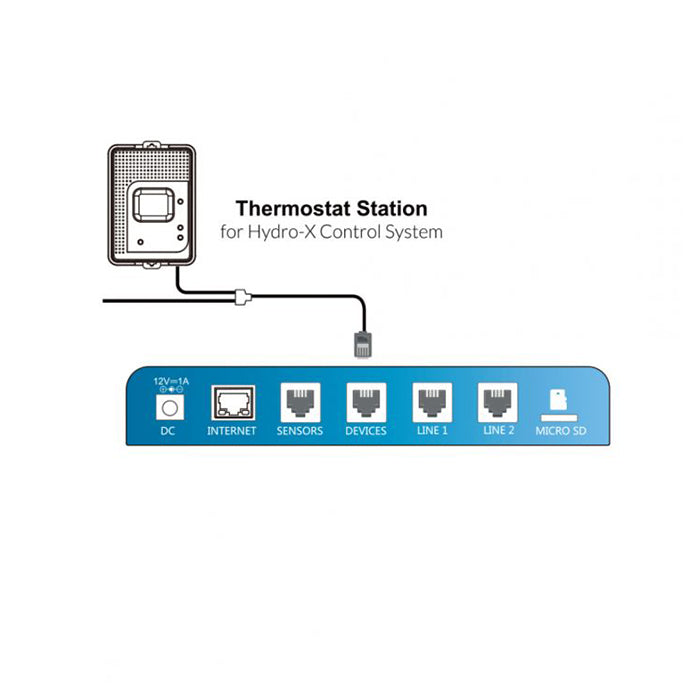

The TS-2 thermostat stations is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pump and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC systems being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled..
SPECIFICATIONS:
- Output Voltage: 24V
- Maximum Current: 1A
- Working Environment: Temperature 32-122°F, Humidity≤90%
- Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
FEATURES:
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
PACKAGE CONTENTS:

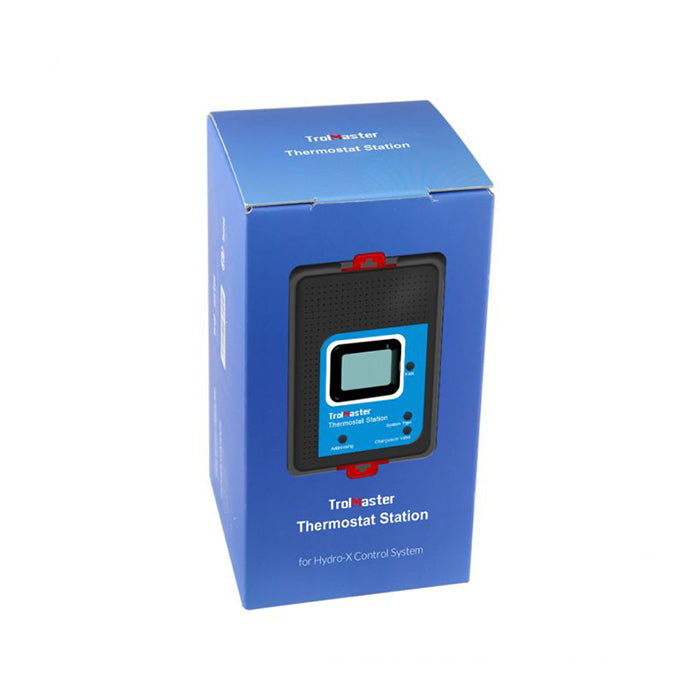

- 1 x Thermostat Station (TS-2)
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
