Description
TROLMASTER - HYDROX THERMOSTAT STATION

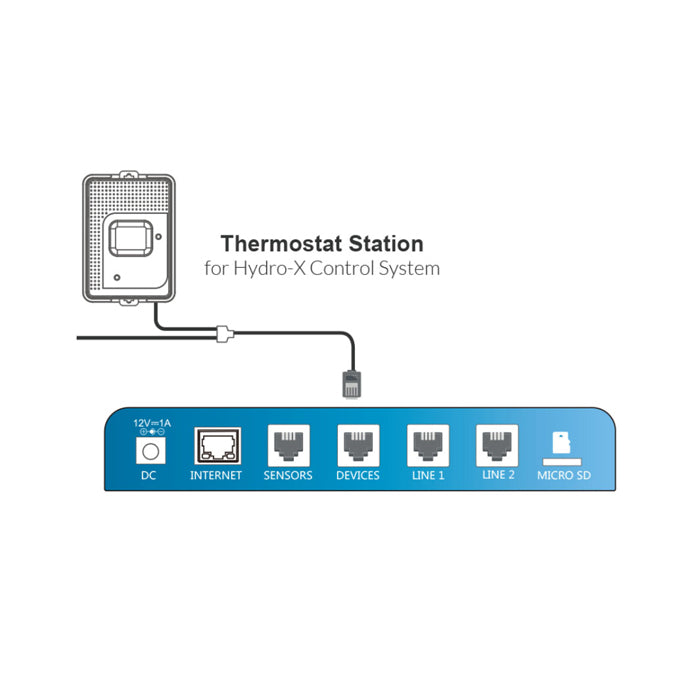

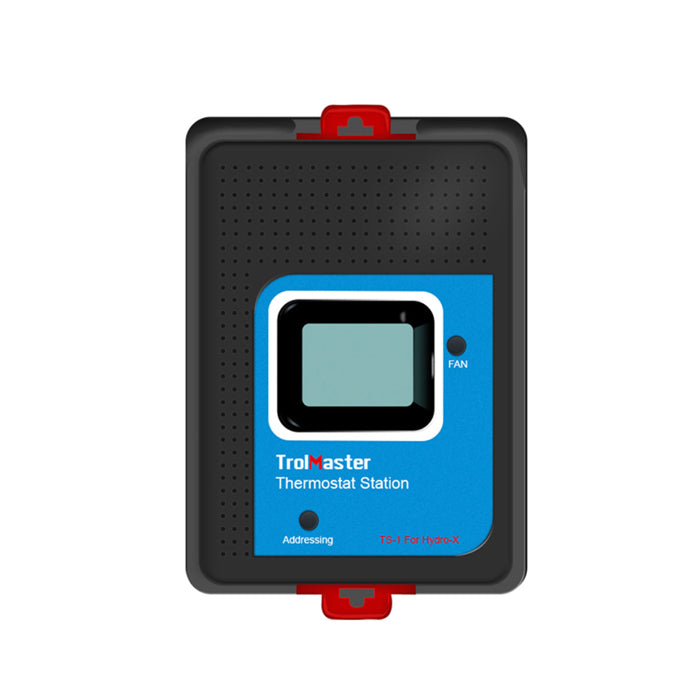

The TS-1 thermostat stations is designed to replace a thermostat connected to a convetional cool oly HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules so multiple HVAC systems can be controlled by a single Hydro-X system.
SPECIFICATIONS:
- Output Voltage: 0~11.5V
- Maximum Current: 0.2A
- Working Environment: Temperature 32-122°F, Humidity≤90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
- G.W. per pack: 0.40kgs
FEATURES:
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
PACKAGE CONTENTS:

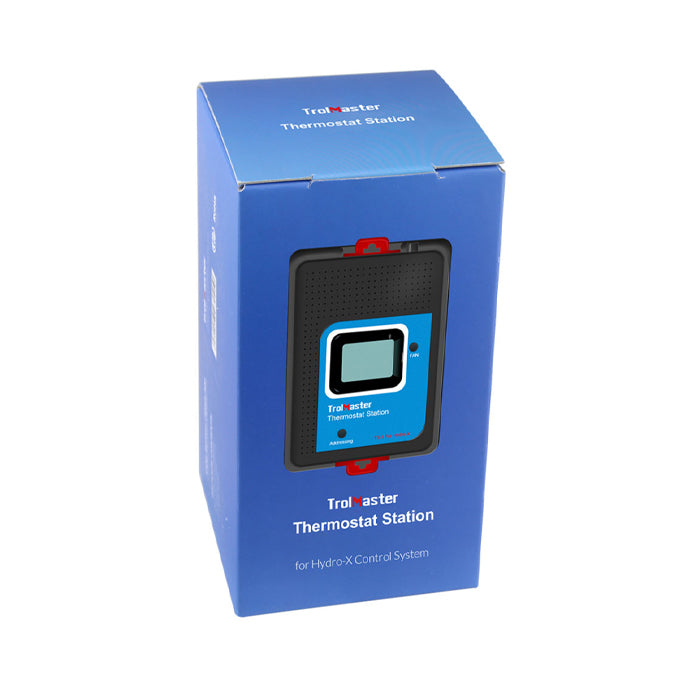

- 1 x Thermostat Station (TS-1)
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
