Description
TROLMASTER - HYDROX AC REMOTE STATION

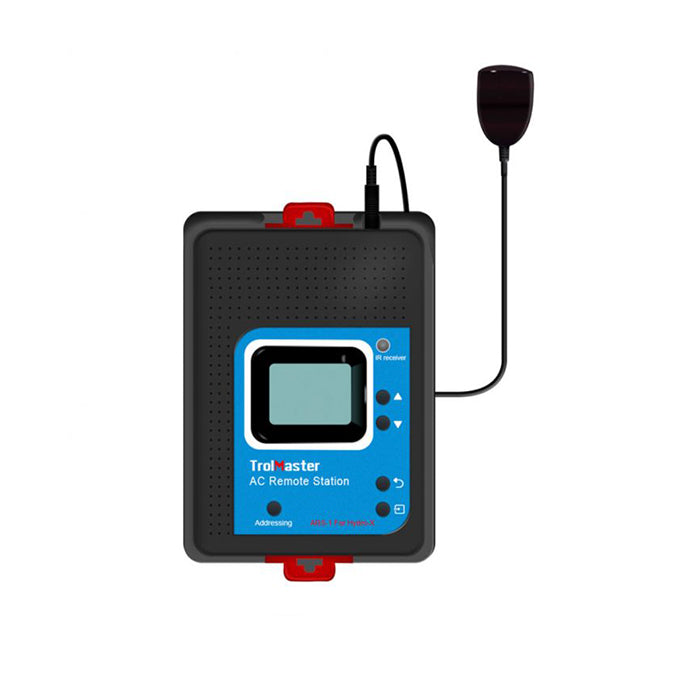

The ARS-1 mini-split air conditioner controller is a unique product that solves the age-old problem of having separate day and night temperature settings on your mini-split air conditioners. The ARS-1 is a universal controller that works with most mini-split air conditioners (and some window-type AC units too), as long as the unit came with an IR / infrared remote controller. We use the remote control that came with the unit to “teach” those IR signals to the ARS-1 module. Once the ARS-1 “learns” those remote control codes, the ARS-1 will send those same signals to the indoor mini-split head unit changing the setpoint to the desired Day or Night temperature setting automatically base on the photocell sensor status.
FEATURES:
- LCD Display, Easy Operation

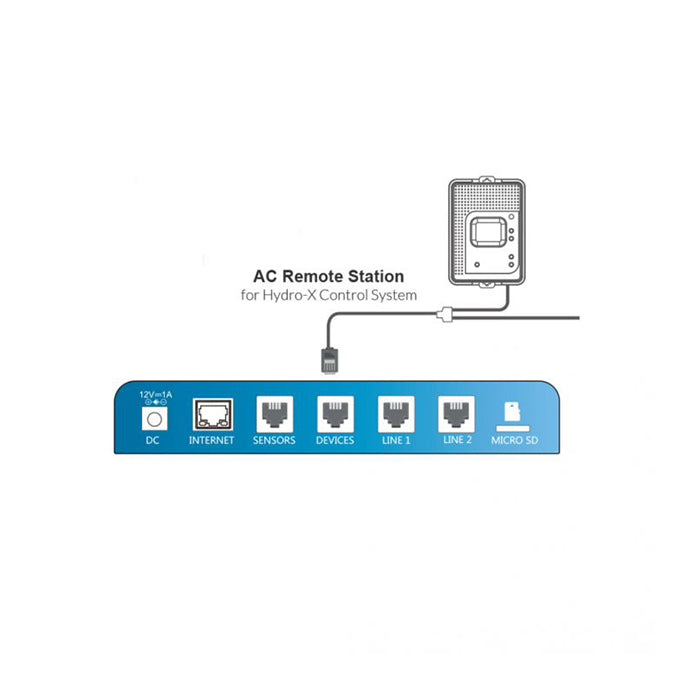

- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
SPECIFICATIONS:
| Output Voltage | 0~11.5V |
| Maximum Current | 0.2A |
| Working Environment | 0-50°C, Humidity≤90% |
| Dimensions | 160 x 86 x 86mm |
| G.W. per pack | 0.43kgs |
PACKAGE CONTENTS:
- 1x AC Remote Station (ARS-1)
- 1x Signal Emitter
- 1x 16ft RJ12 Cable
- 1x 4ft RJ12 Cable
- 1x RJ12 T-Splitter
