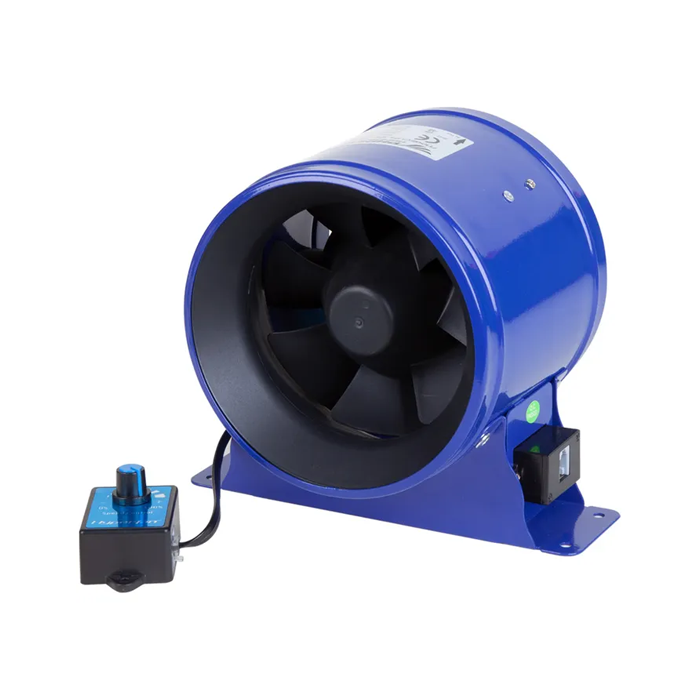

Phresh Hyperfan V2


Title: Hyperfan - 150mm/6" V2
Price:
Sale price£193.00

Description

PHRESH HYPERFAN

The Hyperfan by Phresh is an outstanding in-line fan in terms of both efficiency and performance over alternative fans that are currently available on the market, with a power usage of 13.5 m3/h per watt, while the leading competitor is 6.5 m3/h, that’s half the power consumption!

Approximately 1/3rd the weight over conventional in-line fans, it also offers quieter and cooler operation as it utilises a fully digital motor giving it extended reliability and twice the lifespan of other available fans.

The bearing within the Hyperfan is a 6mm sealed unit, as opposed to 4mm self-lubricating, this increases reliability at any RPM and with the speed controller using Pulse Width Modulation, it gives continuous adjustment with no buzz whatsoever! The speed controller is also independently wired on a separate circuit to the power input reducing stress, preventing failures and increasing the overall lifespan.

It also features a built in failsafe mode with thermal cut-out and in the unlikelihood that the speed controller fails, the fan will continue to run on full speed and can be removed without removing the fan.

KEY VALUES:

  • New 9 pole digital EC 'brush-less' motors
  • Higher fan efficiency @ 7.85 cfm per watt
  • Higher linear airflow output than other fans
  • Higher static pressure output than other fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable
  • All Hyperfans also come with a 2-year warranty

SPECIFICATIONS:

HyperFan 125mm

Cubic Feet per Minute (CFM) 2065
M3/h 350
Power Consumption 27W
Weight  1.6kg
WG Pressure 1.92“
Diameter 5”/125mm
Length 4.65”/118mm
Noise 65 dB A
Amps 0.25 A

Hyperfan 150mm

Cubic Feet per Minute (CFM) 315
M3/h 535
Power Consumption 35W
Weight  1.3kg
WG Pressure 2.1“
Diameter 6”/150mm
Length 5”/125mm

Hyperfan 200mm

Cubic Feet per Minute (CFM) 710
M3/h 1205
Power Consumption 75W
Weight  2.3kg
WG Pressure 2.16“
Diameter 8”/200mm
Length 6.25”/160mm

Hyperfan 250mm

Cubic Feet per Minute (CFM) 1065
M3/h 1810
Power Consumption 170W
Weight  3kg
WG Pressure 2.4“
Diameter 10”/250mm
Length 8”/200mm
